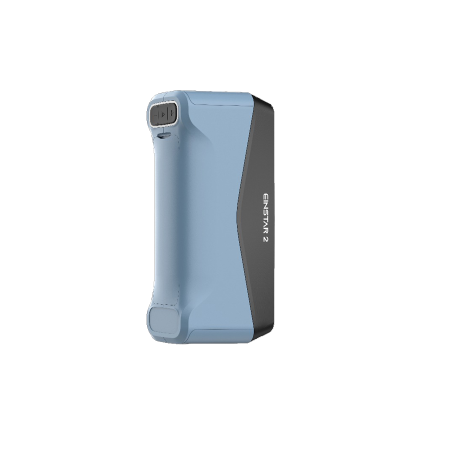

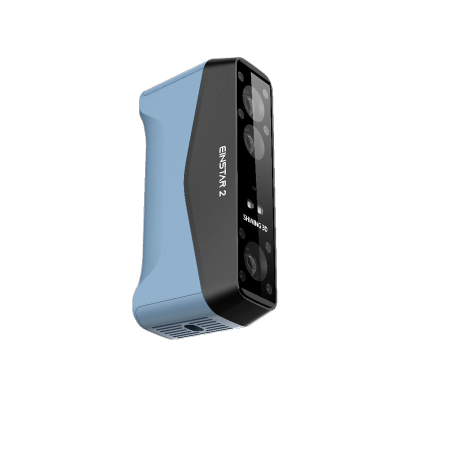

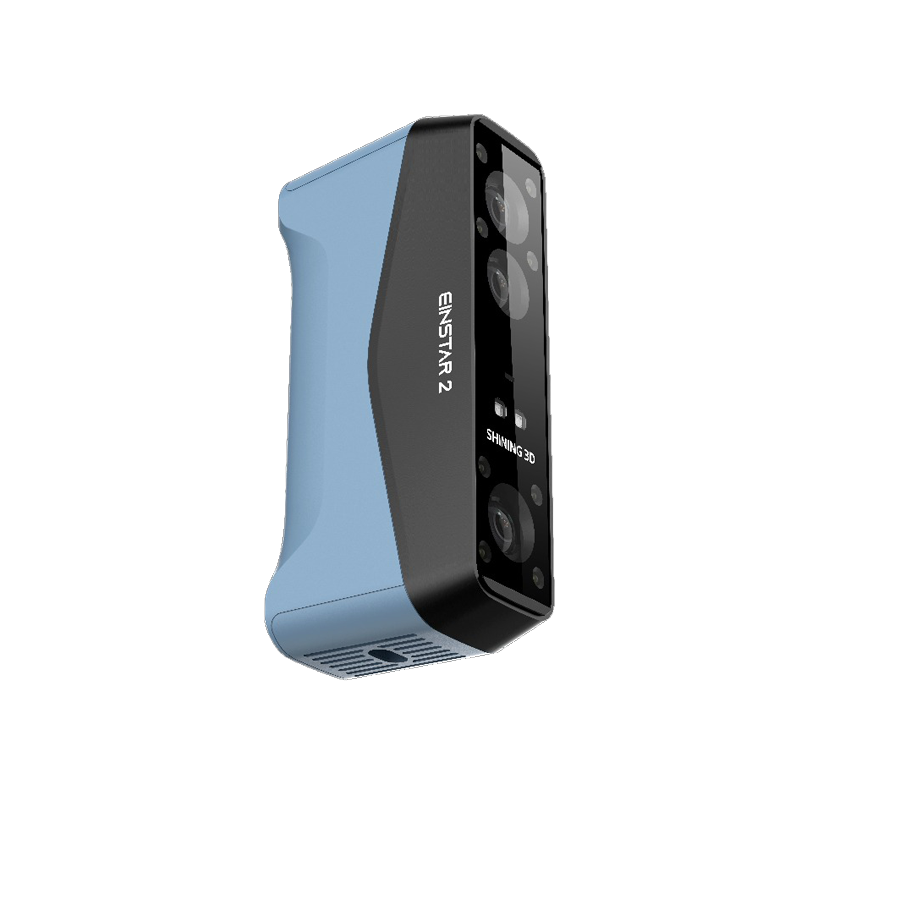

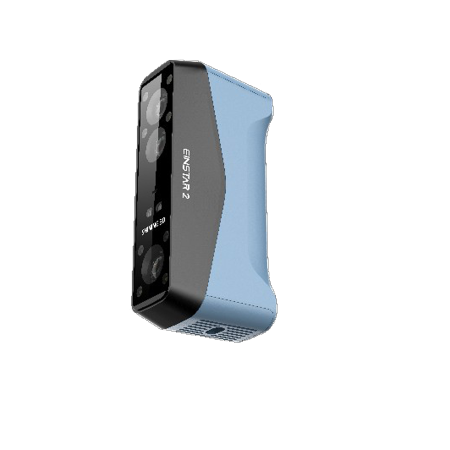

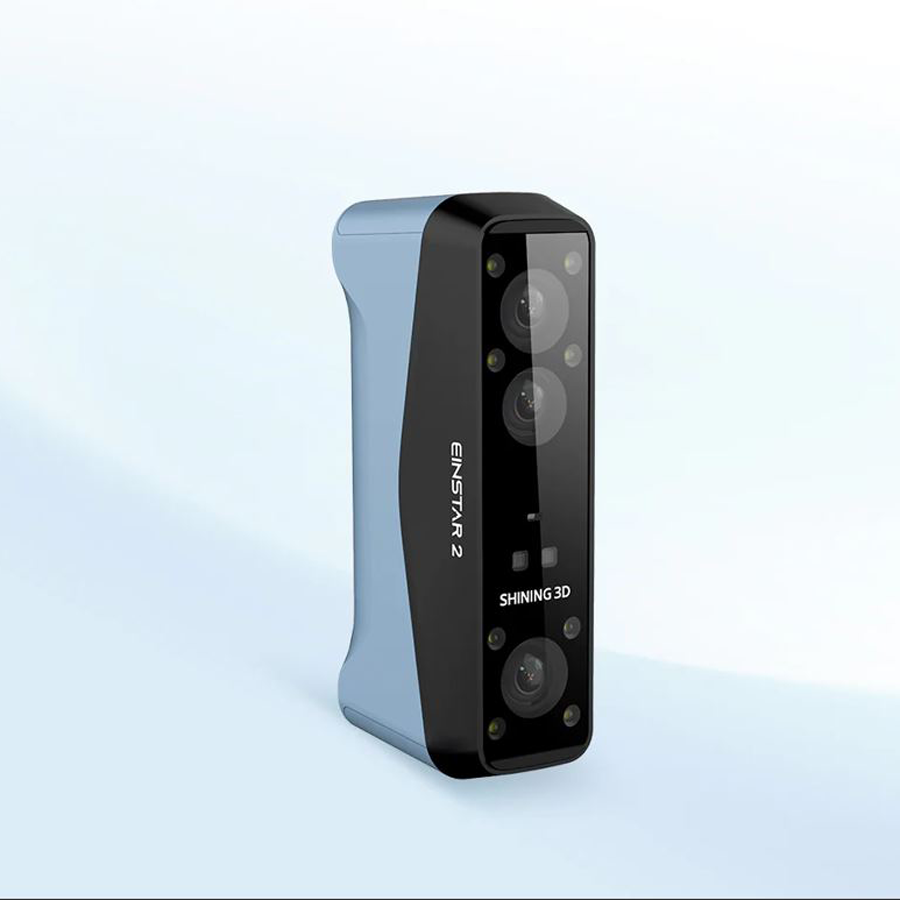

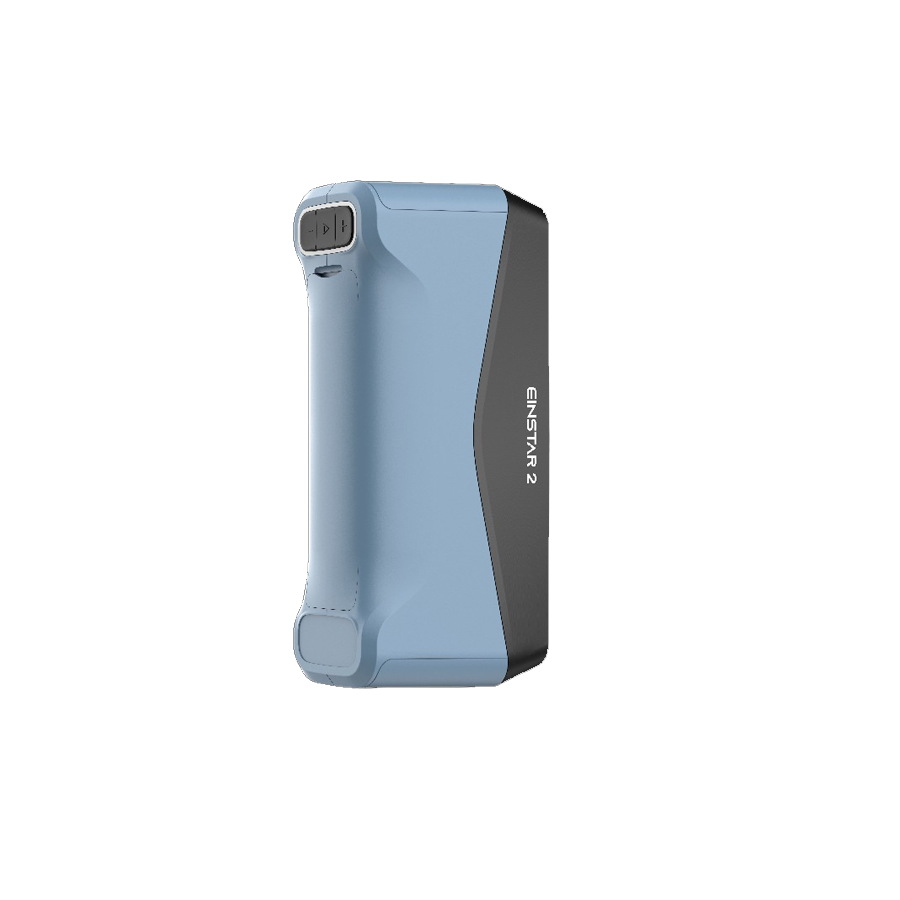

Shining 3D - 3D scanner Einstar 2

Code: SHEST2
Brand: Shining 3DShining 3D
1.438,80 € incl.t | 1.199,00 € Xt
No stock, pre-order available
Pre order Add to wishlist

Specifications

Shining 3D
Scanner

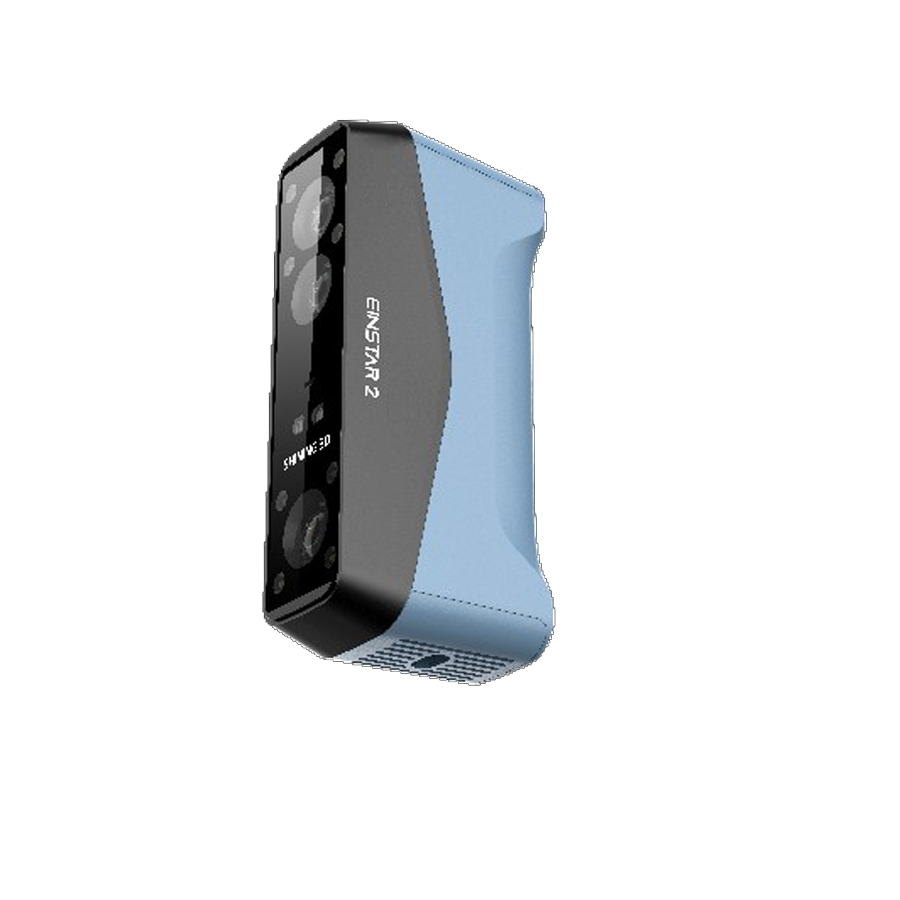

Einstar 2 wireless scanner - Shining 3D

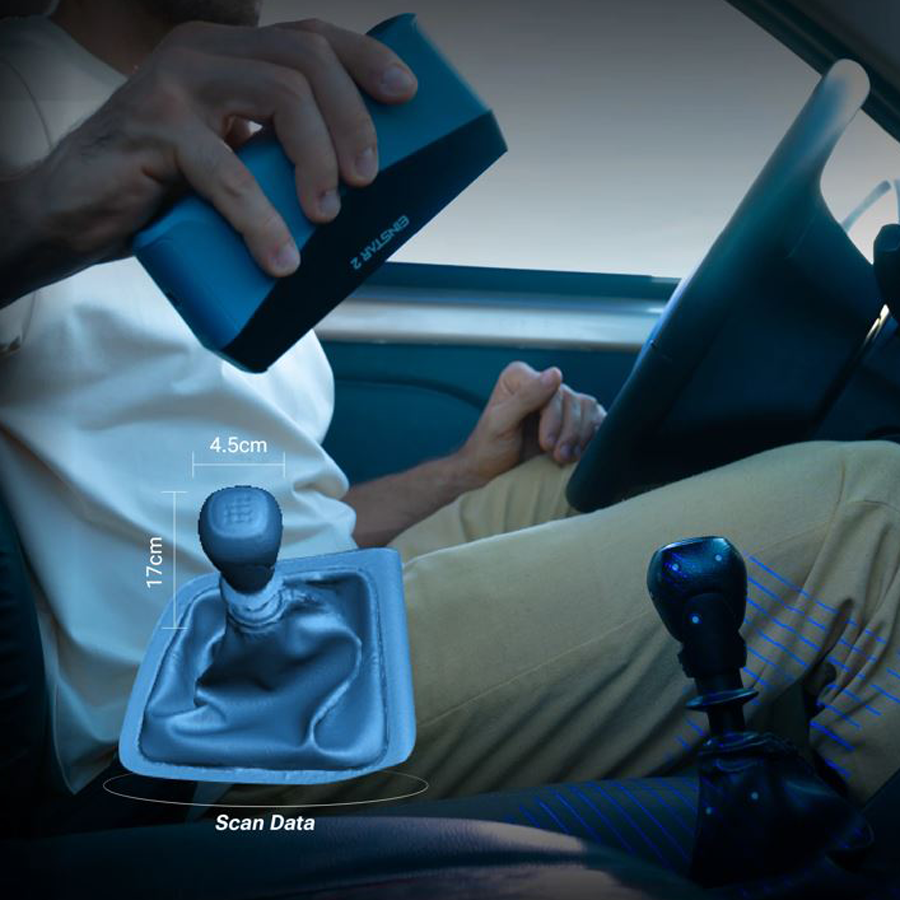

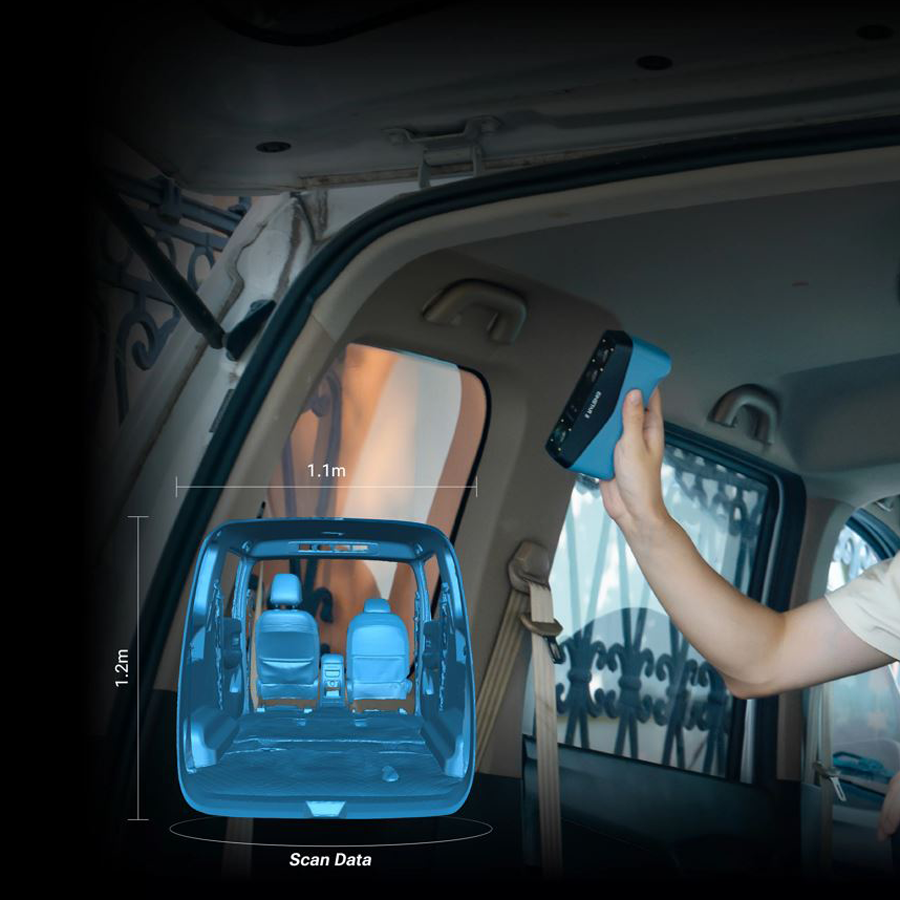

The Einstar 2 takes up the main features of the Einstar by improving them. Lighter, thinner it is the ideal 3D scanner for scanning on the go.

The quality of the rendering is that of a studio thanks to its hybrid light source and vibrant color capture.

Its built-in battery allows up to 3 hours of scanning without interruption.

The Einstar 2 includes two digitization technologies:

  • Blue laser - 17 parallel lines
  • Infrared - VCSEL

Thanks to these two technologies it is very versatile. The Einstar 2 adapts to a wide range of materials and can scan black or reflective objects directly, without spray.

Caractéristiques :

  • Light source: 17 blue parallel lines + IR VCSEL
  • Resolutions: 0.05 - 10mm (HD laser mode) / 0.2 - 10mm (Fast IR mode)
  • Working distance: 100~600mm (HD laser mode) / 160~1400mm (Fast IR mode)
  • Scan speed:2,500,000 points/s (HD laser mode) / 1,440,000 points/s (Fast IR mode)
  • Max. Field of View: 1*1*1cm (HD laser mode) / 5*5*5cm(Fast IR mode)
  • Output format: STL, OBJ, PLY, 3MF, ASC
  • Weight of the scanner: 0.425 Kg (batteries included)
  • Scanner dimensions: 130 x 37 x 61mm
  • Laser class: Class 2 (HD laser mode) / Class 1 (Fast IR mode)

The photos are not contractual.

In order to constantly improve its products, Shining3D reserves the right to modify the characteristics of its 3D scanner without notice.
